HECHT + DIEPER is a tech­nologically leading com­pany in the injection moul­ding of plastics tech­nology. It has many years of engineering experience and by using the latest tech­nologies reaching from development, mould con­struction, to tool pro­duction and manufacture HECHT + DIEPER is able to manufacture innovative plastic products of the highest precision.

The development and production of plastic parts – reaching from conceptualisation to production takes place under one roof: A prerequisite for short development phases and high product quality.

The profes­sional 2K injection moulding con­struc­tion of a 2K injection moulding tool is the basis for the produ­ction of high-quality and visually appealing injection moulded parts. The individual require­ments for the injection moulded part are recorded and taken into account as far as possible in the design of the injection mould.

The result is a 2K injection moul­ding tool suitable for series prod­uction, which usually delivers injec­tion moulded parts of the high­est quality far in excess of the guara­nteed output quan­tity.

hecht-dieper-hintergund.svg

Process steps in 2K injection moul­ding design

The design of 2K injection moulded comp­onents involves several critical process steps. Firstly, the comp­onent geometry is designed to be 2K-compatible. Depe­nding on the component, injection moulding options, sealing surfaces, support areas, etc. must be mod­elled.

At the same time, the choice of material and the compa­tibility of the plastics for 2-comp­onent injection moulding produ­ction are evaluated. Decisive factors include adhesion of the materials to each other, melt temper­ature, material shrink­age, etc. Find out more about the various material combi­nations.

hecht-dieper-fertigungshalle-impressionen-fliessband-blaues-werkstueck-faehrt-ueber-band.jpg

This is follo­wed by the actual design of the 2K injection moul­ding tool. The first step is to decide which basic 2K concept is suitable (see below). The mould is then desig­ned with the help of CAD soft­ware.

In the constr­uctive design, factors such as the removal of under­cuts, the possi­bility of ejection, sufficient venti­lation and cooling, surface require­ments and much more must be consi­dered and implem­ented, as with the classic 2K injection moul­ding design.

Once the con­struct­ion has been finalised, drawings of the asse­mbly and individual parts are created and trans­ferred to the tool­making process. The CAD data is also released and used for CAM-supp­orted produ­ction.

Mould concepts in 2K injection moulding (extract)


Turning technology

With rotary moulds, a pre-moulded part is first prod­uced in a cavity in the first process step. This is follo­wed by a horizontal rotary move­ment in which the pre-­moulded part is rotated into the second cavity. The second comp­onent is then injected into the second cavity, while another pre-moulded part is injected into the first cavity at the same time.

Depe­nding on the part geometry, the desc­ribed rotary movement can be perfor­med by the complete ejector-side mould half or by individual mould elem­ents, such as a stripper plate or an insert. The great adva­ntage of this process is the simult­aneous injection of both compo­nents and therefore short cycle times.

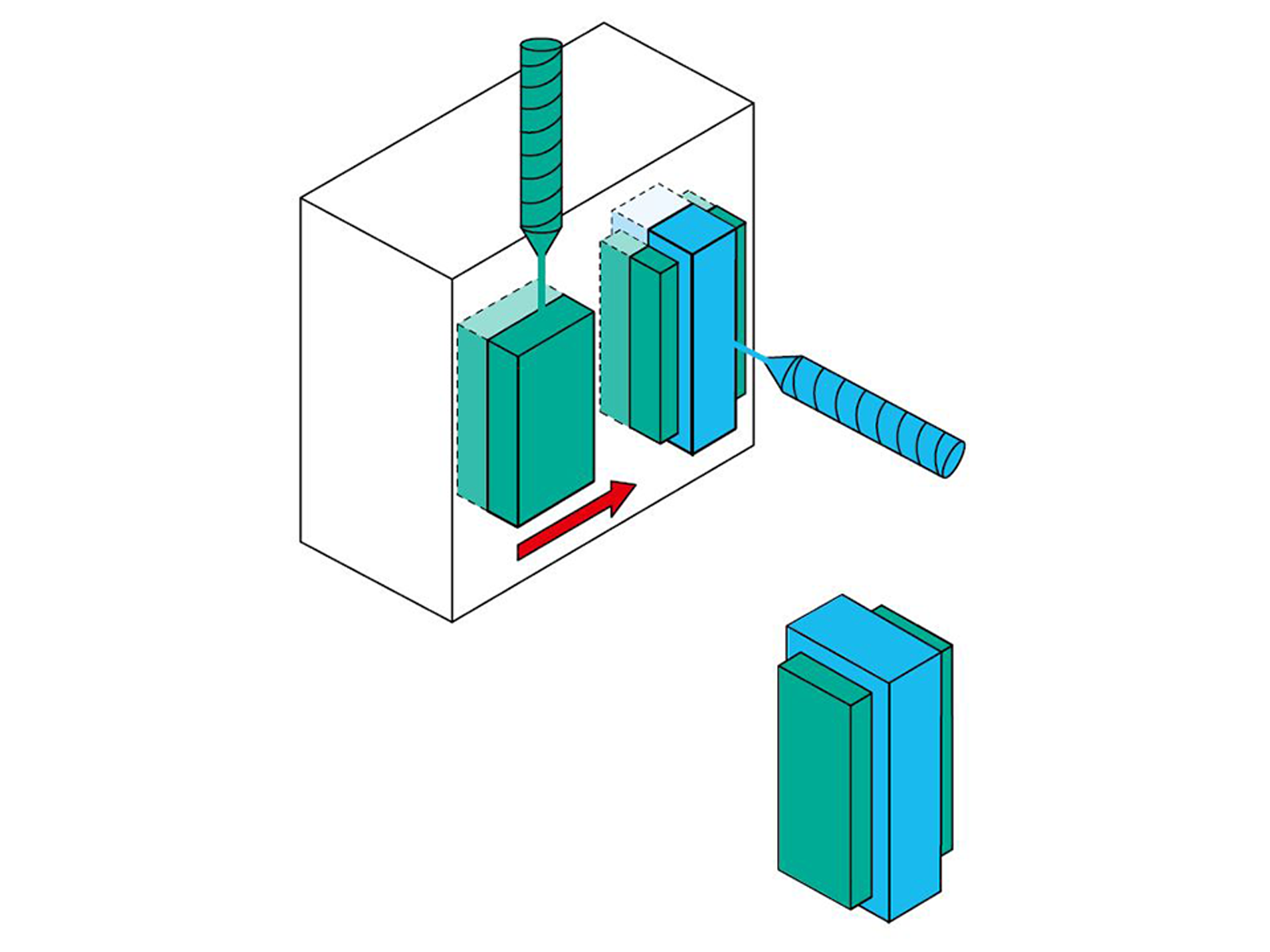

Transfer­technician

The pre-moulded part is trans­ferred to the second cavity with the help of a robotic system or by hand (small series). In this process, the pre-moulded part and the fini­shed part are also prod­uced at the same time, resulting in short cycle times.

Other advan­tages comp­ared to turning techno­logy include simpler mould techno­logy, the possi­bility of therm­ally separ­ating the diff­erent states, use of the robotic system for up­stream or down­stream opera­tions and much more.


Core-back technique

In the core retra­ction process, the cavity is expanded by pulling a slide or core to inject the second comp­onent. In principle, this allows simpler geo­metries to be realised and the produc­tion process is sequ­ential.

However, the process can also be used in combi­nation with the turning process and then offers the above-mentio­ned advan­tages.
